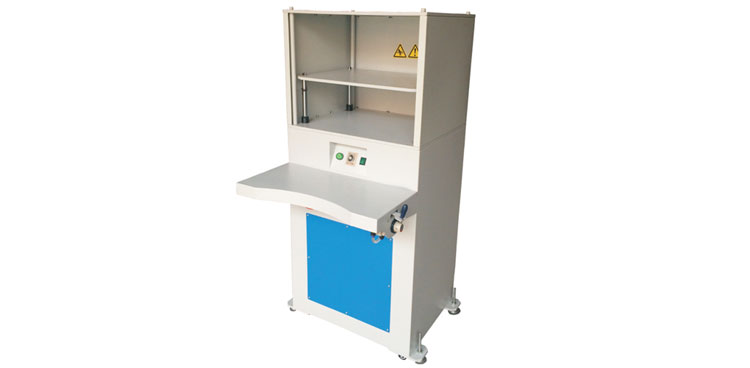

YP-500 Pneumatic Pressing Machine

  • Features
  • Details
  • Technical Data

YP-500 Pneumatic Pressing Machine employs the pneumatic drive for shaping, which is widely used for pressing on a pile of folded papers, thin papers, hard cases, corrugated papers, after the gluing process.

Compared with common pneumatic pressing machine, it is specially designed with double pressing stations, and using two hands to start the machine operation, as well as the stable performance of pressing plates, in order to improve the efficiency and the pressing quality, and to avoid any personal injury.

Model YP-500
Pressing Size of Every Floor 500*400*200mm
Air pressure 6Bar
Max. Pressure 500kg
Machine Weight 200kg
Machine Dimensions(L*W*H) 885*660*1480mm
